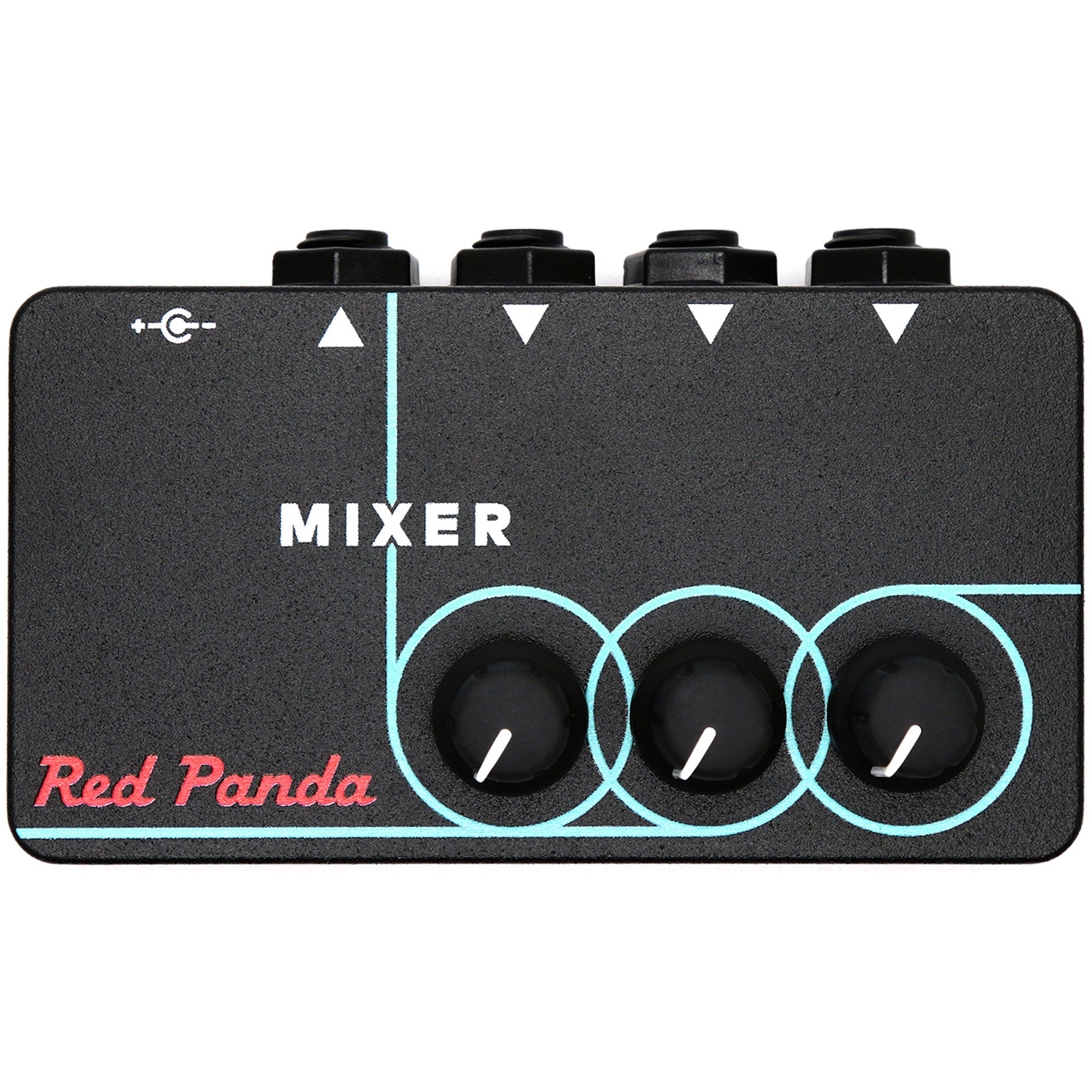

Red Panda - Bit Mixer

The Bit Mixer is a small, mono in/out, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op amps. High-impedance inputs are designed for guitar, but work with line level signals as well. Each input has a volume knob that goes from off to unity gain.  Only 4.4” x 2.6”, and works with standard pedal power supplies from 9-18 V.  Designed and assembled in USA.

The Bit Mixer is always on when power is connected. An internal LED is visible below the power jack.

Usage

• Connect multiple instruments to one amp
• Combine parallel effects chains
• Clean blend or analog dry path

Size:

4.4" x 2.6" x 1.5"

Input impedance:

1 MΩ

Output impedance:

< 1 kΩ

Frequency response (± 3 dB):

20 Hz - 40 kHz

Signal-to-noise ratio:

90 dB

Power:

9-18 VDC, center negative

Current:

40 mA
