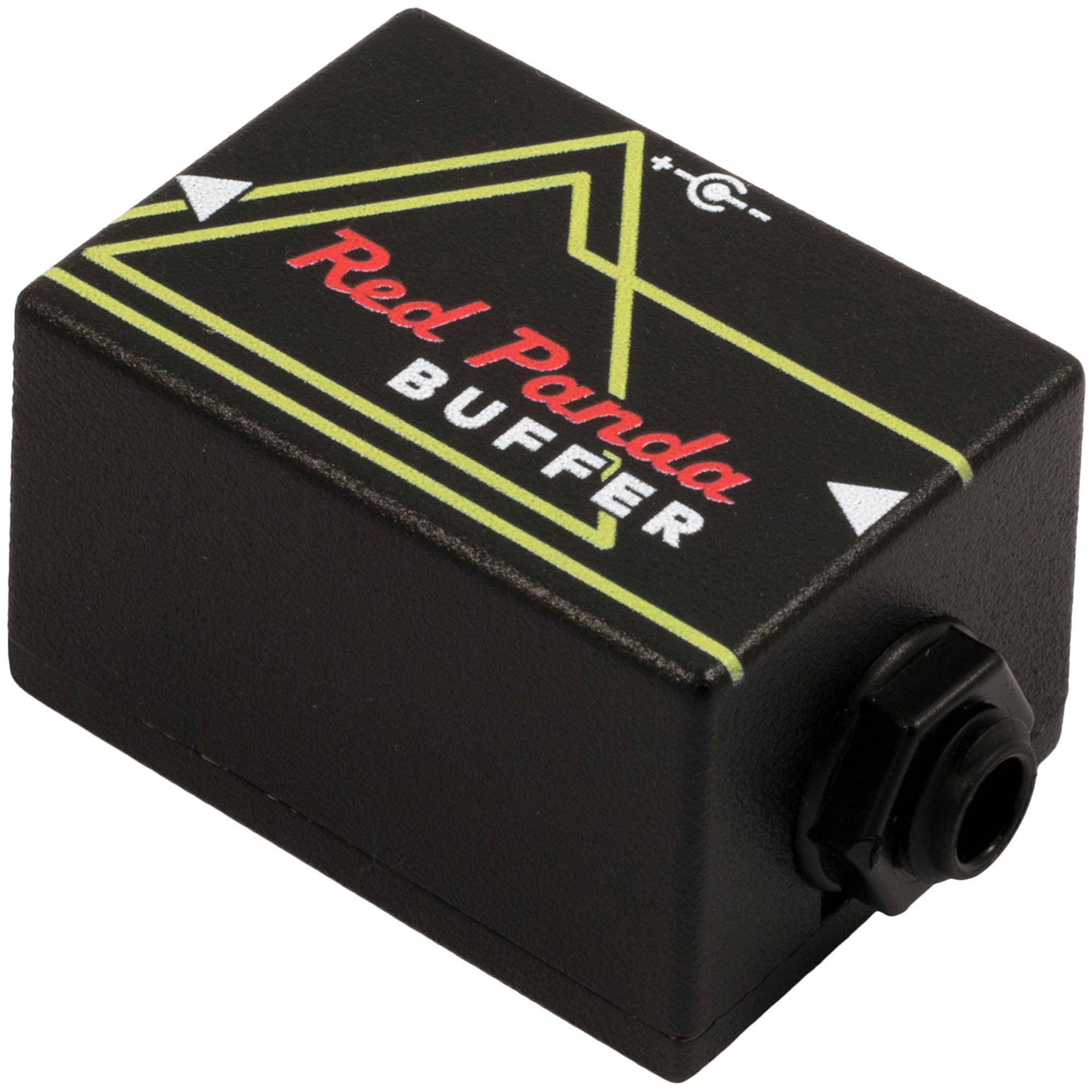

Red Panda - Bit Buffer

The Bit Buffer is a tiny (2” x 1.5”) buffer that uses an ultra-low distortion, low-noise Burr-Brown op amp. Place it at the beginning of your pedal chain to prevent high-frequency loss (tone suck), or right before a long cable to a pedalboard or amp.

The Bit Buffer is always on when power is connected. An internal LED is visible below the power jack.

Size:2" x 1.5" x 1.2"

Input impedance:1 MΩ

Output impedance:~ 50 Ω

Frequency response (± 3 dB):20 Hz - 40 kHz

Power:9-18 VDC, center negative

Current:20 mA
