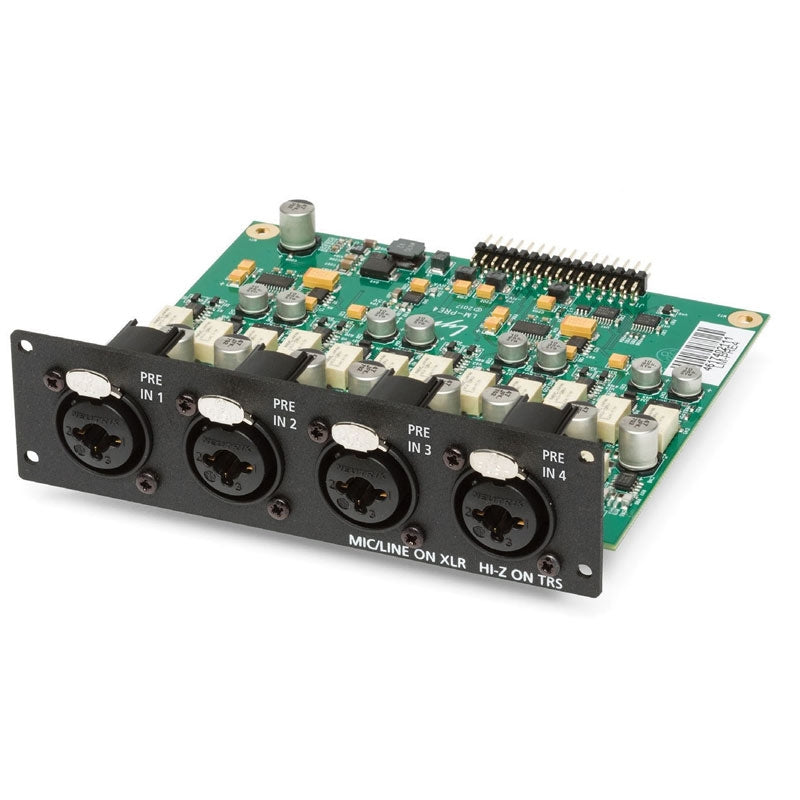

The Lynx LM-PRE4 four-channel microphone preamplifier module transforms the Aurora(n) into a full-fledged computer interface and stand-alone audio recording device. This high performance module extends the capabilities of the Aurora(n) product line by adding support for microphone, HI-Z or line level input signals and direct coupling to four additional channels of A/D conversion per module.

LM-PRE4 FEATURES:

Four-channel microphone/line/HI-Z input module for Aurora(n)
On-board Aurora(n) A/D conversion directly coupled to preamp out
Fully-differential, current-feedback preamplifier architecture
Transformerless, transparent design
Up to 68.6 dB gain in 1 dB increments
Low noise(-129 dBu EIN) microphone input
Noise and distortion optimized at all gain settings
Independent 48 V phantom power, phase, high-pass filter, and pad for each channel
Dedicated line level signal path provides performance identical to AIO8E
Gold contact relays for distortion-free signal routing
Seamless integration with Aurora(n)’s mixing and routing engine
