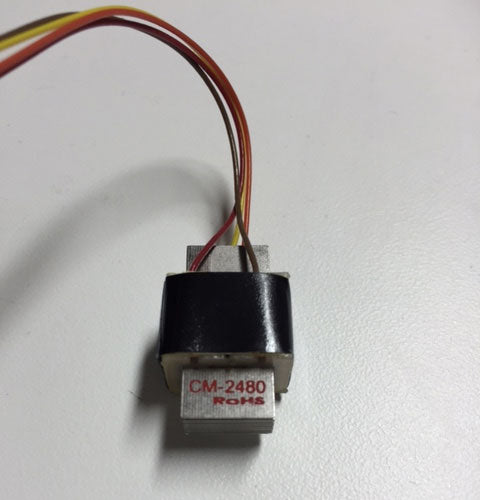

Twin bobbin microphone output transformer. Compact size. Recommended for use in place of direct box transformer (CM-DBX) for vacuum tube microphone output stage.

• 10.5 : 1 Turns Ratio
• High Nickel Core
• Superb Bandwidth
• Low distortion
• Phase Shift -6 degrees at 20 kHz with Source Impedance of 10K

The CineMag CM-2480 microphone output transformer is intended to provide superb bandwidth and very good distortion characteristics in a very small package. It works very well with high impedance tube circuits including triode output stages. It is uses a hum-bucking design giving it very good rejection of stray magnetic interference. Because of this, it also has excellent CMRR. It is optionally available in a mu-metal can.
