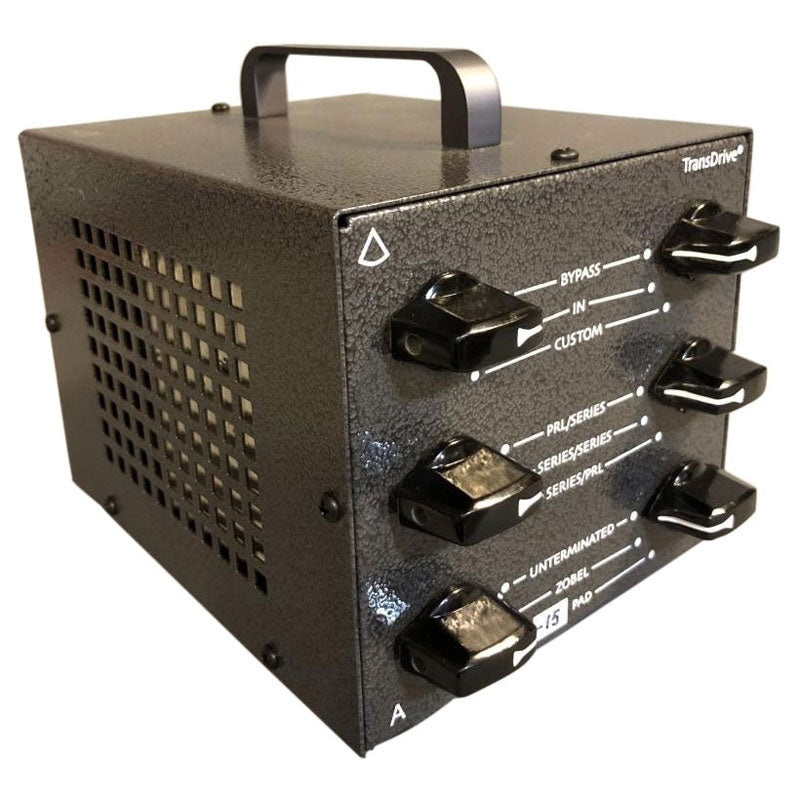

Avedis Audio TransDrive Passive Transformer Interface
The TransDrive allows the user to interface with passive audio transformers for the purpose of attaining a specific and music signature sound. It can house a variety of different audio transformers and allows the user to change parameters with a simple selection of a rotary switch. The TransDrive includes a hard Bypass for comparing the difference the transformer is making in the chain.
FEATURES
Passive transformer interface
True Bypass
Custom configurable
Can mount a variety of transformers
XLR input and outputs
Steel chassis with durable finish
Large rubber feet and solid handle for minimum vibration
Pad on output can be customized
Unterminated or with Zobel Network switchable
Patented Xsolate® Ground Lift System safely isolates ground
Specifications
Ratio Gain/Loss
1:2 = +6dB, 1:1 = 0dB, 2:1 = -6dB
Frequency Response
3Hz – 60kHz (-1dB)
Input Impedance @ 600 ohm load
1:2 = 150 ohm, 1:1 = 600 ohm, 2:1 = 2400 ohm
Distortion
Input dependent
Noise
Passive; same as source
Chassis
Steel
XLR pins
Pin 1 = shield, Pin 2 = Hot+, Pin 3 = Cold-
Dimensions
5.5″width, 5″ height, 7″ length (5.5″ x 6″ x 8.5″ w/knobs and rubber feet)
Weight
10 lbs 8 oz (4.8 kgs) Western Electric 111C
