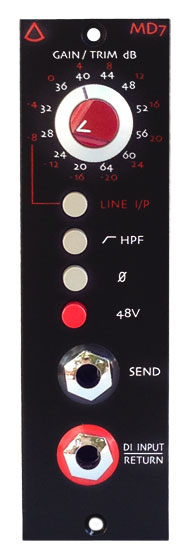

Avedis Audio MD7 Microphone Preamplifier
Avedis Audio
Art: md7microphonepreamp
Increments of 1
Minimum of 1
Maximum of
Sale price
$850.00 USD
-100%
Regular price
Regular price
$850.00 USD
Unit price
per
Avedis Audio MD7 Microphone Preamplifier
Sale price
$850.00 USD
Regular price
Regular price
$850.00 USD
Unit price
per
FEATURES
- Gain range from 0dB – 64dB in 4dB steps for recall-ability
- Input Trim control for fine control of gain
- Utilizes the discrete 1122 op-amp known for depth and resolution
- All discrete design with class A buffer amplifier
- Wide bandwidth, high headroom, low noise
- NO PAD, NO IC’s, and NO Surface Mount Components
- Line Input to interface with DAW’s
- Phase reverse, and filtered 48V phantom power
- High Pass Filter using a gentle slope for natural bass roll-off
- 10 Meg-ohm high impedance DI input great for all instrument pickups
- SEND feature to run signal through stomp boxes for variety of effects
| Frequency Response | <10Hz to -3dB at 75kHz |
| Input Impedance | ≅1500 ohms |
| Output Impedance | <75 ohms |
| Common Mode Rejection Ratio | >123dB min @ 60Hz |
| Maximum Output Level | +28.8 dBu @ 100KΩ, +27.4 dBu @ 600Ω |
| Power Requirements | ±16 vdc @ 35mA per rail |
| Gain Voltage | 0 to 22 Volts |
| Gain dB | 0 to 64.7 dB |
| Equivalent Input Noise | −114 dBu; Unweighted 300kHz bandwidth |
| Weight | 2.6 lbs / 1.18kg |
