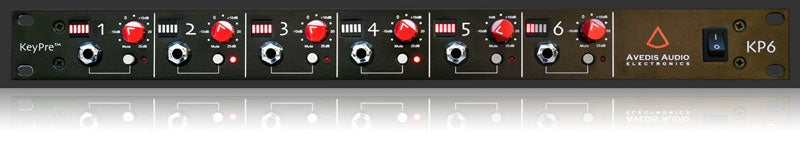

Avedis Audio KP6 KeyPre 6 Channel Electronic Instrument Preamplifier
Avedis Audio
Art: kp6
Increments of 1
Minimum of 1
Maximum of
Sale price
$1,775.00 USD
-100%
Regular price
Regular price
$1,775.00 USD
Unit price
per
Avedis Audio KP6 KeyPre 6 Channel Electronic Instrument Preamplifier
Sale price
$1,775.00 USD
Regular price
Regular price
$1,775.00 USD
Unit price
per
KP6 AUDIO LINE AMPLIFIER
The KeyPre™ was designed for professional keyboard, synthesizer, and drum machine users who want to use something better than a mixer input channel or a DI (direct injection).
Electronic instruments often have a wide range of different output levels and impedances, and with much wider bandwidth than traditional passive instruments such as electric guitars.
This presents a challenge for any outboard device following it. A high performance preamplifier, specifically designed for electronic instruments, is needed to ensure nothing is being compromised or bottlenecked as your sound is being processed.
Over two years have been dedicated to research, test, and develop the KeyPre™ and we are confident it will preserve the integrity of your electronic instrument for both recording and live applications.
FEATURES
Six independent channels
TRS balanced inputs and output, and additional inputs in the front for up to 12 inputs
Uses the high performance Ingenius® input stage
Direct coupled discrete preamplifier
Jensen transformer balanced output
Up to 32dB’s of Gain
Can be used with either balanced or unbalanced keyboards
Supports all variety of electronic keyboard or synthesizer output impedances
Very wide frequency response to capture the full bandwidth of your electronic instrument
High headroom surpasses even your DAW
5 bargraph LED meter which can be custom adjusted internally
Internal international power supply
Patented Xsolate® Ground Lift System to safely isolate output stage ground connection
Designed and manufactured in the U.S.
3 Year Warranty
Specifications:
Frequency Response
3Hz – 70kHz
Input Impedance
40k ohms
Maximum Level before clipping
+28dBu
THD+N
0.015% @ 10dB Gain
IMD
0.02% (400Hz, 4kHz)
Noise
-115dB
Dimensions
19”W x 1.75”H x 8”D
Weight
8 lbs
Power consumption
18W
